Technical Specification
Thread : 14mm CCW (M14x1 LH)
Bore Through Barrel : 8.8mm
Material : 6026 T9 Aircraft grade aluminium
Finish : Anodised black
Fits : Tokyo Marui Mk23 SOCOM NBB only, does not fit ASG or other clone Mk23 models

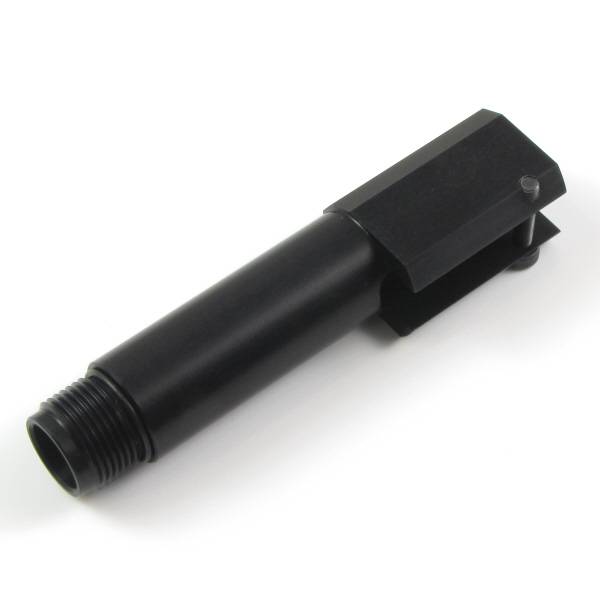

So you have a Tokyo Marui Mk23 SOCOM NBB and you've realised it's awesome, except you want to use standard 14mm CCW threaded accessories but don't like the extra length a 16mm to 14mm CCW thread adapter adds to it. Now with this CNC machined 14mm CCW barrel there is no need for a thread adapter, 14mm CCW mock suppressors, tracers or even outer barrel extensions can be fitted on directly.
In addition to being a much neater way of adding a 14mm CCW thread to your Mk23 these barrels feature a larger through bore to allow longer inner barrels to be used without any modification and will accommodate most brands of inner barrels, 3 o-rings are also provided to stablise the inner barrel within the outer, only 1 needs to be used but all 3 can be stacked together. Please note that certain brands of inner barrel with a smaller outside diameter of 8.1mm or less may not be well supported by the o-rings.
The redesigned split clamp body combined with the higher quality material used for these barrels also allows them to clamp down more securely ontop the hopup unit than the stock die cast alloy barrels, care should be taken when tightening the clamp bolt to avoid stripping the thread.
Use of a thread protector during storage or when another accessory isn't fitted is highly recconmended to protect the threads from damage, during long term storage a small amount of grease should be applied to the barrel thread. Two CNC machined thread protectors are offered at a discounted price when ordered with the barrel, please see the related products at the bottom of the page to view photos and details.
